Long parts such as elevator trusses have long dimensions and heavy weight. Their conveying and buffering on a coating line requires a dedicated solution. Taizhou Yufeng Intelligent Equipment Co., Ltd. designs a power-and-free conveyor coating and conveying system for elevator component manufacturers, solving the problems of long-part conveying, cycle control and space utilization.
Principle of the power-and-free conveyor

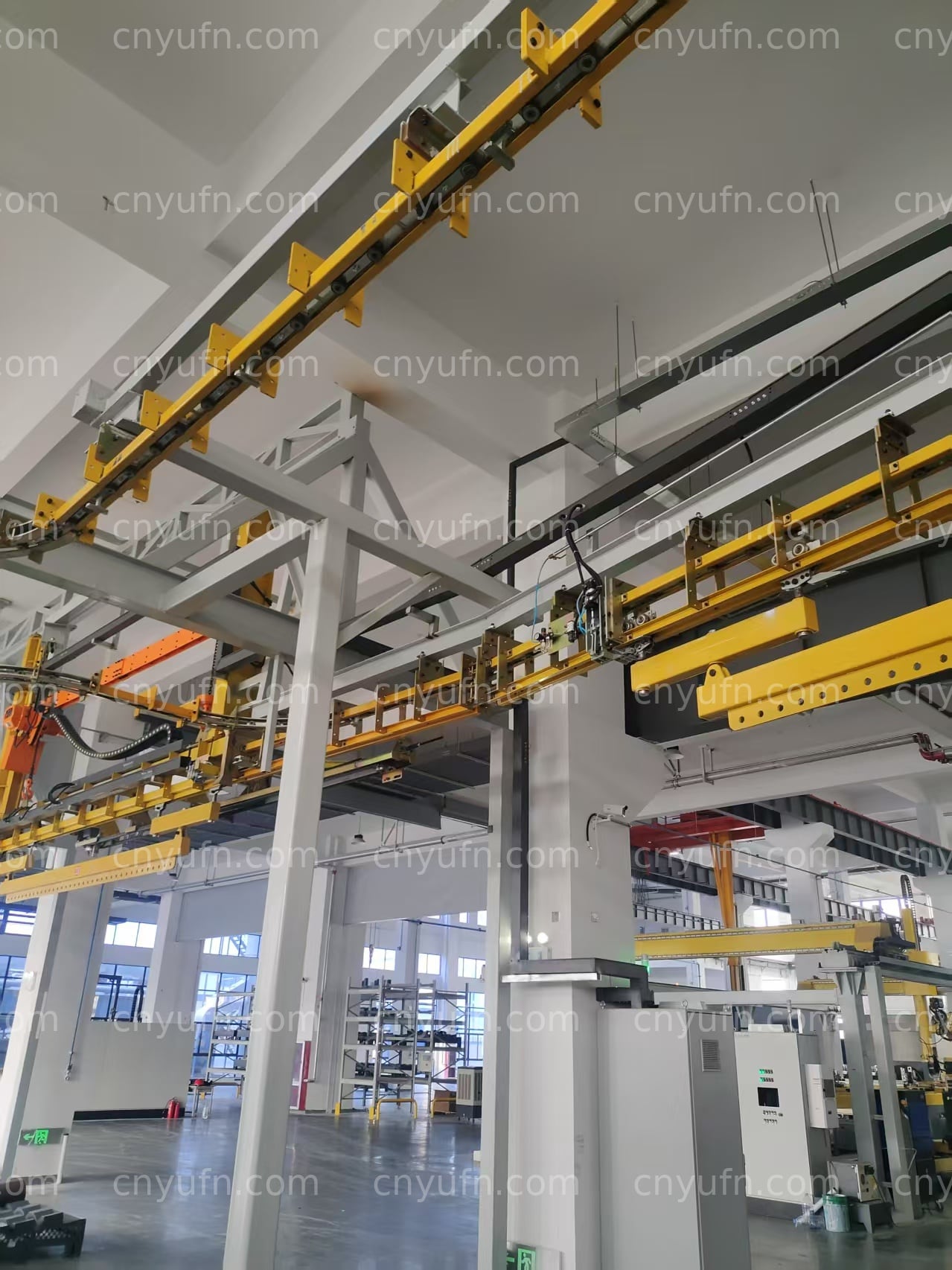

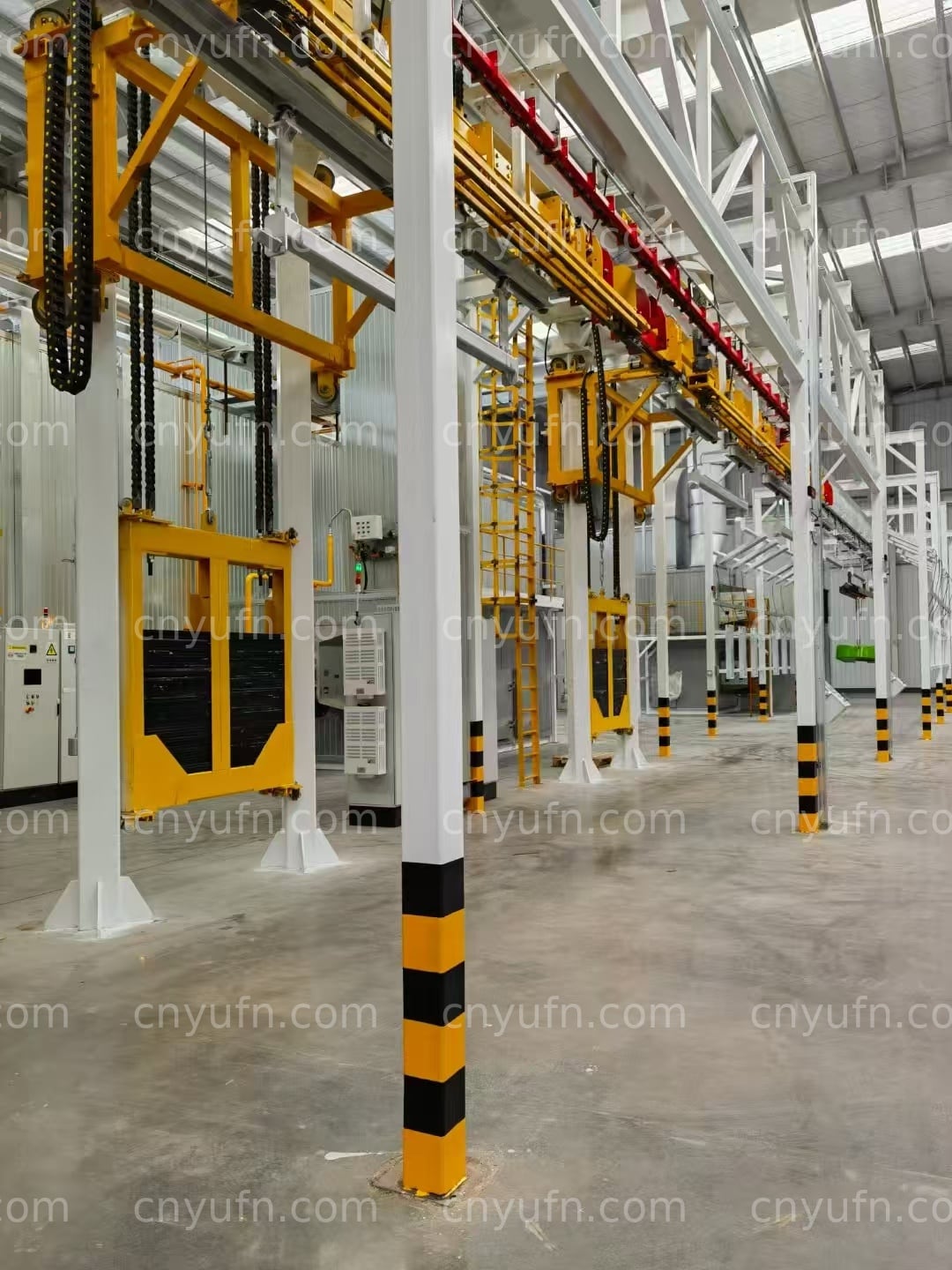

The power-and-free conveyor combines a pusher dog and conveyor chain. Workpieces are carried on trolleys hung on the chain and can be conveyed, stopped and accumulated. The accumulation function lets workpieces flow flexibly between pretreatment, painting and drying stations, and cycle differences between stations are buffered through accumulation. The power-and-free conveyor suits continuous coating conveying of long and heavy workpieces.

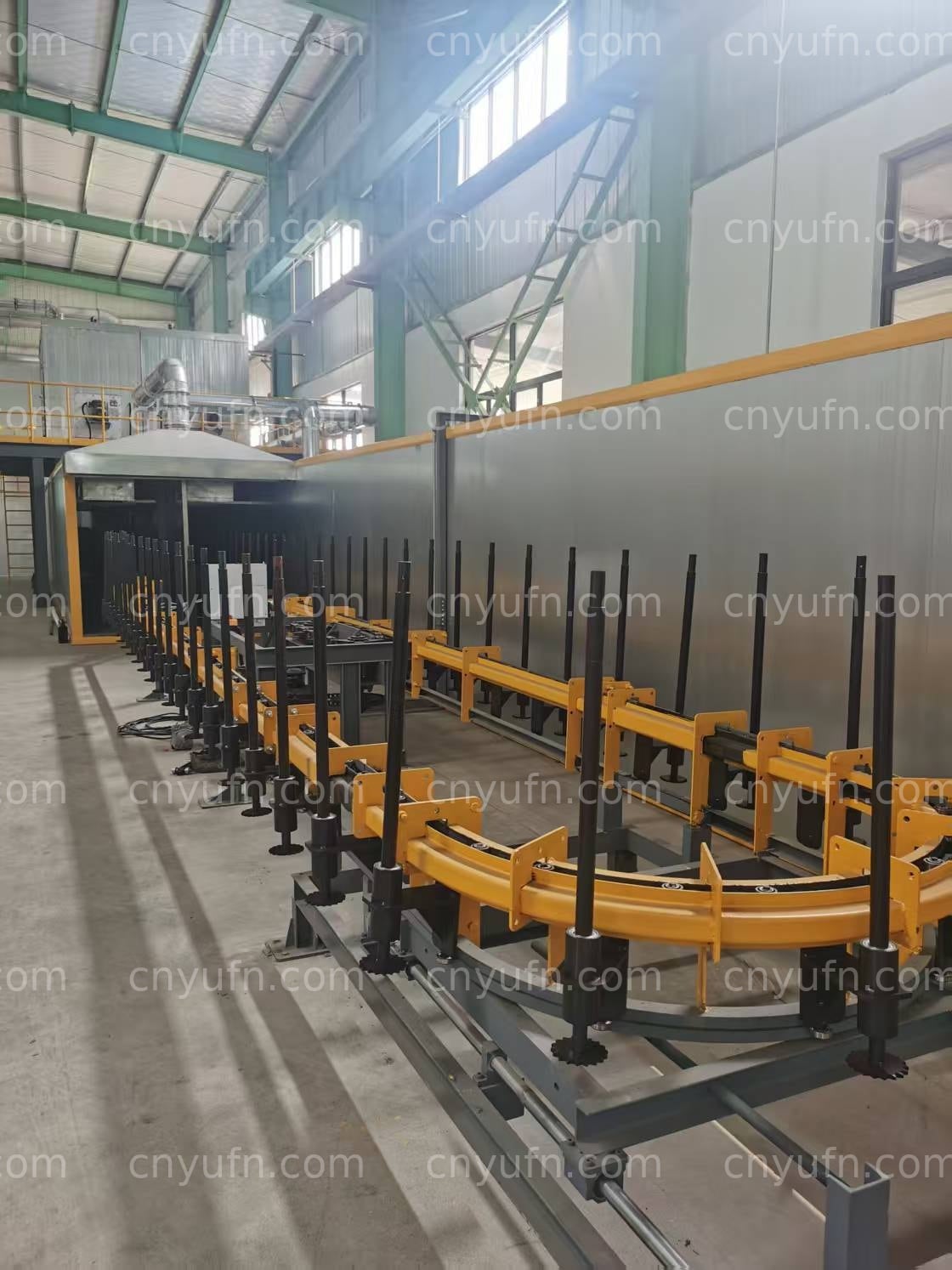

Station layout of the long-part coating line

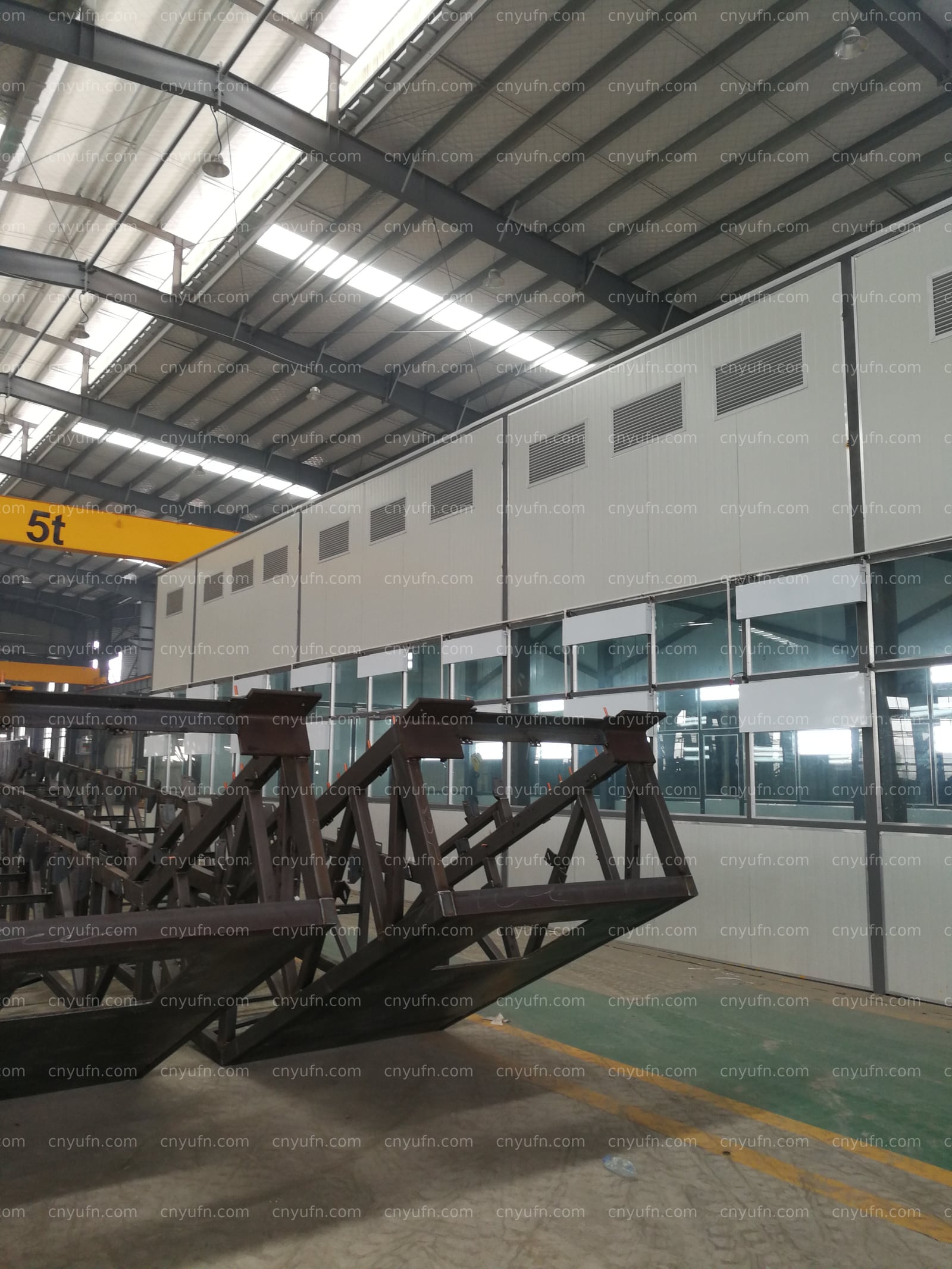

The elevator truss coating line is arranged in pretreatment, painting, drying and unloading stations, with the power-and-free conveyor running through the whole line. Pretreatment uses immersion or spraying, and the truss passes after hanging. The painting station is equipped with an operation platform for spraying long surfaces. The drying oven uses a long tunnel structure through which trusses pass continuously. The unloading station is equipped with slings for loading and unloading.
Cycle and buffer control
The accumulation function of the power-and-free conveyor allows workpieces to buffer in front of stations while waiting for processing. The system controls conveying and accumulation logic according to the process cycle, avoiding workpiece build-up and long waiting. Encoders position stations accurately, and conveying speed is adjustable. The control cabinet manages the whole line status and alarms on abnormality.
Coating quality and safety
Long-part coating quality is controlled through pretreatment quality, spraying parameters and drying temperature. Truss structural parts focus on coating adhesion and appearance. The conveyor is equipped with safety guarding and limit devices to prevent workpiece collision and falling. Slings are inspected regularly to ensure lifting safety.
Project planning
When planning an elevator truss coating conveying system, provide the workpiece size, weight, output, coating standard and factory length. We design the power-and-free structure, station layout and control system, and provide the equipment list and investment estimate.
