Tower crane structures, excavator parts and large industrial components are large, heavy and varied. Painting these parts faces problems such as frequent lifting, difficult mist control and inconvenient transfer. Taizhou Yufeng Intelligent Equipment Co., Ltd. designs dedicated painting lines and spray booths for large structural parts, guaranteeing coating quality and operating safety.
Large paint booth design

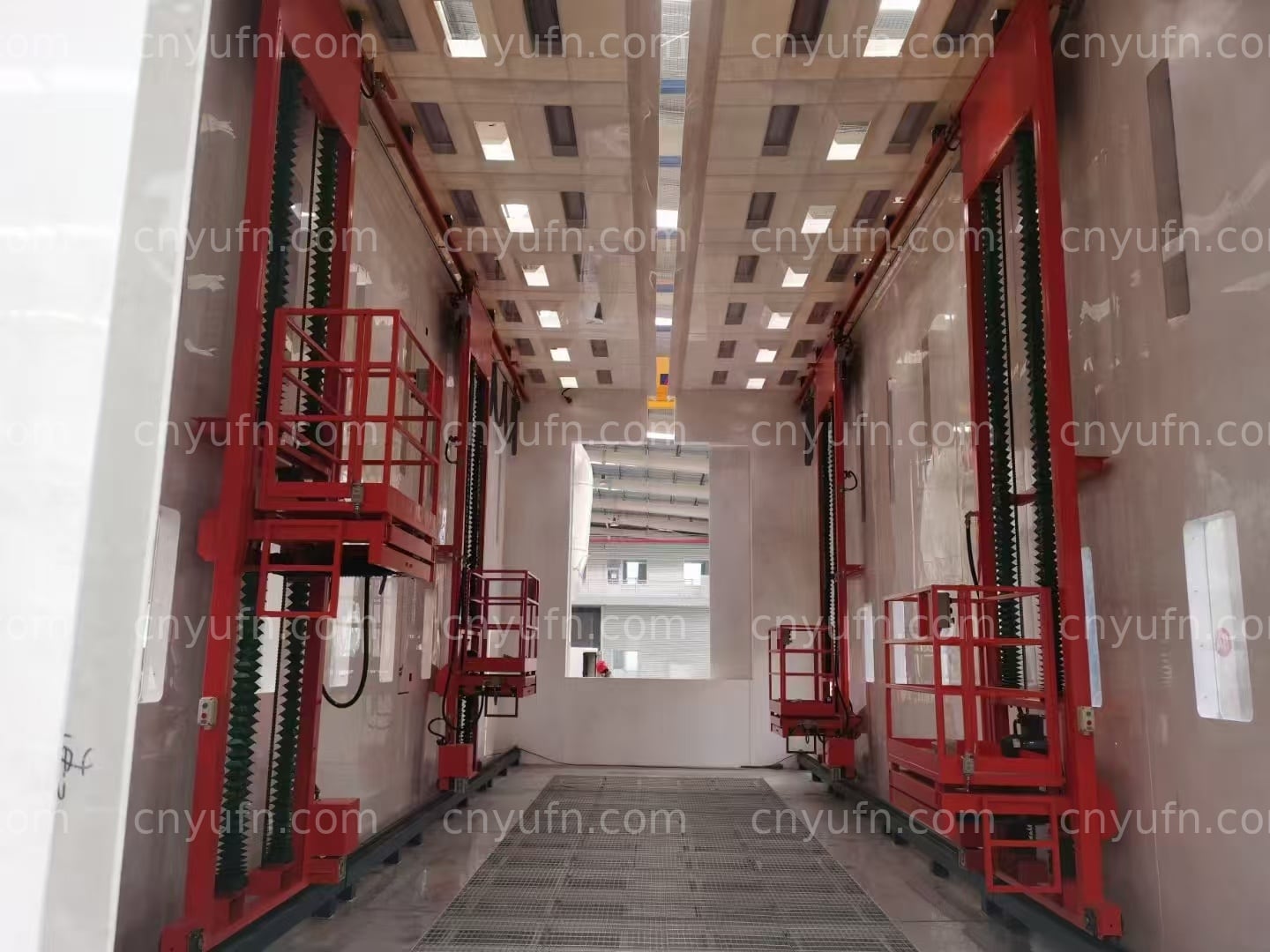

The large paint booth is designed according to the maximum product size, with length, width and height sufficient for workpiece entry and exit. The booth body uses steel structures and insulated panels, with a ventilation system of supply-air top filters and bottom exhaust to control mist and solvent concentration. Explosion-proof lighting meets working brightness. The floor has anti-slip treatment, and fire extinguishers and emergency devices are equipped.
Electric transfer trolley

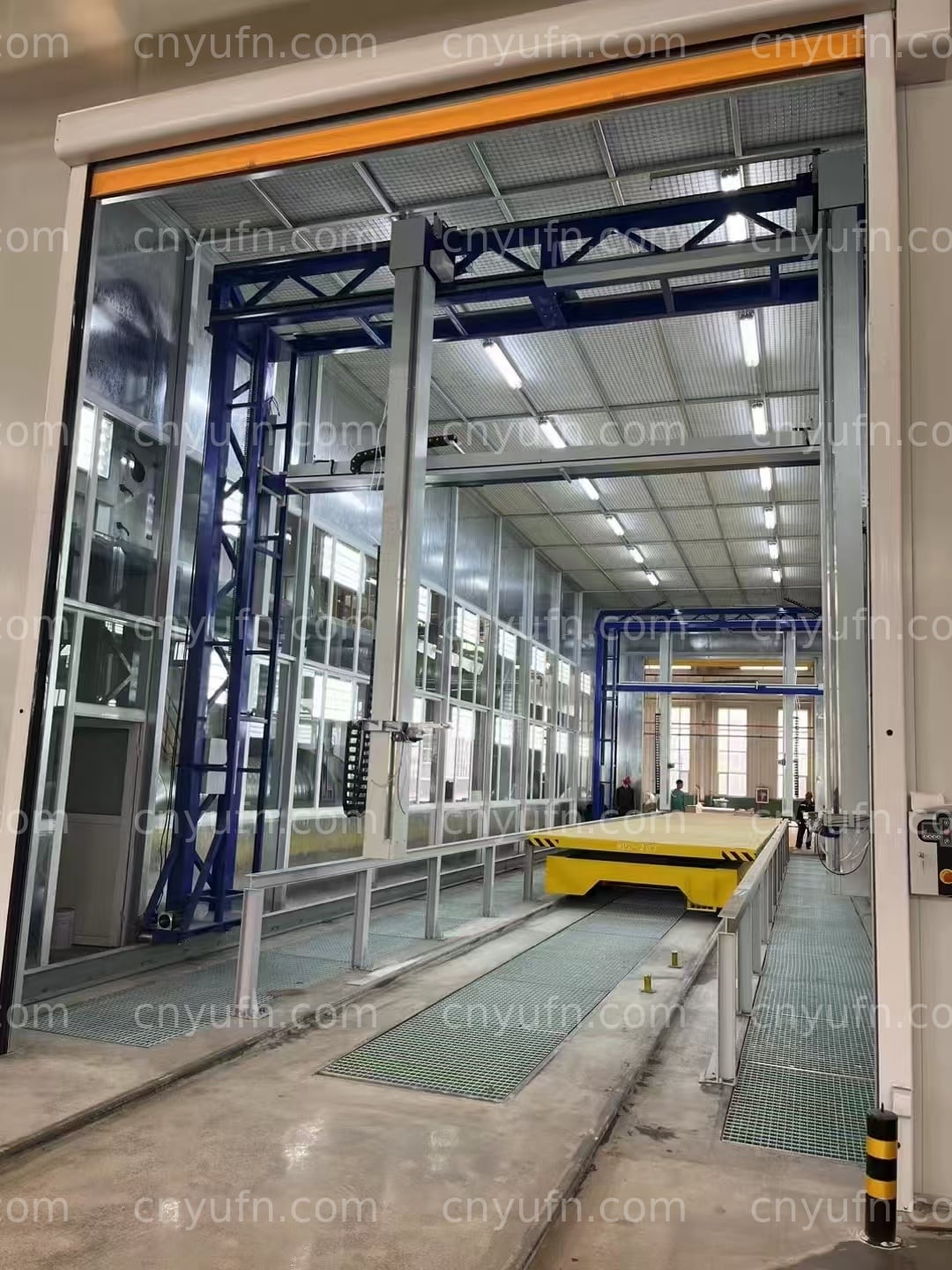

Large products are transferred between the paint booth, drying and storage areas by electric transfer trolleys. The trolley load capacity is designed for the maximum product weight, with speed control and positioning. The track is arranged on the workshop floor and docks with the booth, and workpieces transfer smoothly after loading. Multiple trolleys work together to improve turnover efficiency.
Ventilation and mist control
The ventilation system of the paint booth controls airflow direction and reduces mist retention. Air volume is calculated according to booth volume and air exchange rate, and exhaust air is treated and discharged to standard. Solvent-based paints require waste gas treatment facilities such as activated carbon adsorption or catalytic combustion to meet environmental requirements. The ventilation system is inspected regularly for air volume and filtration efficiency.
Workpiece handling and positioning

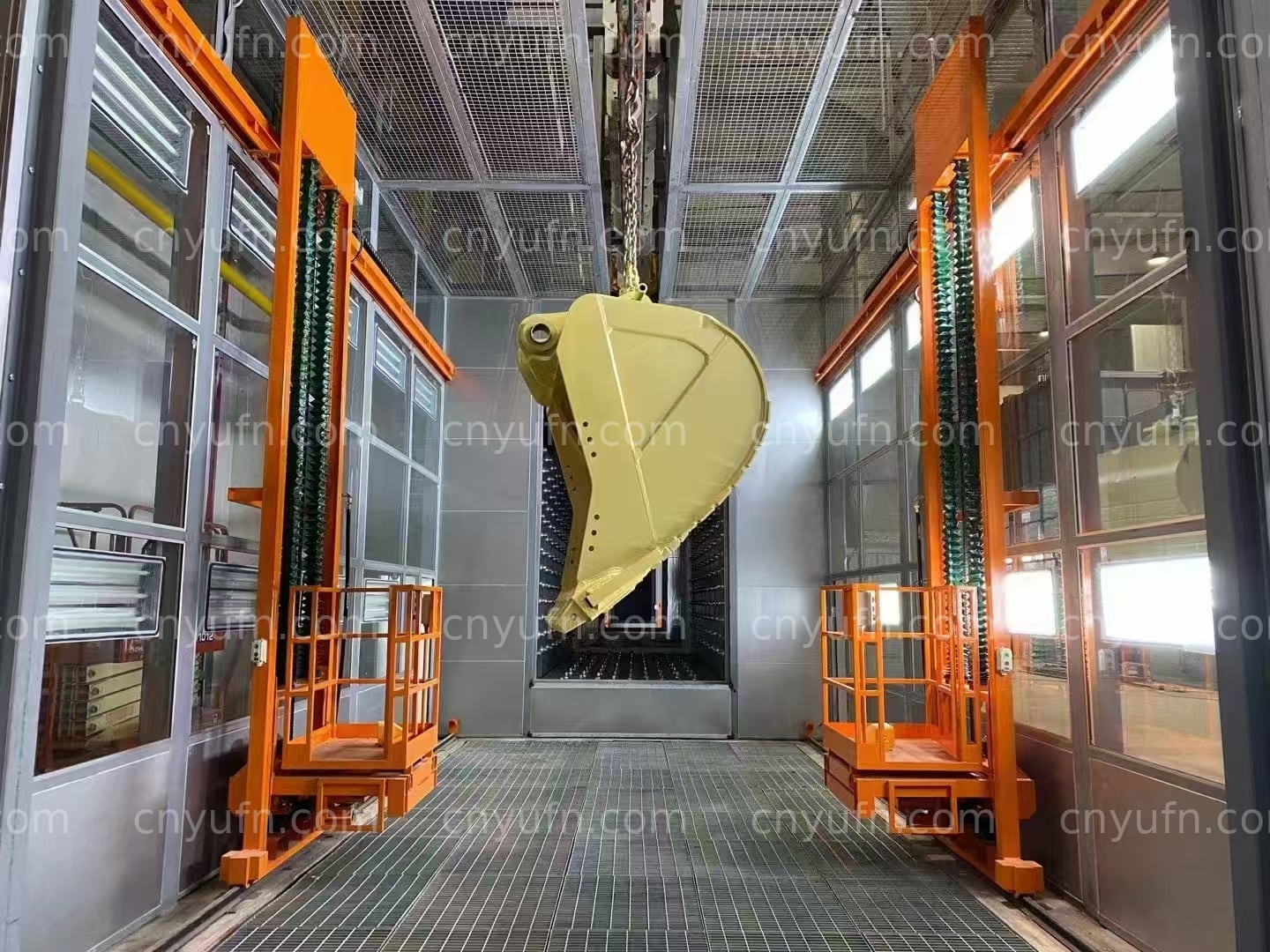

The loading, unloading and turning of large workpieces uses overhead cranes or gantry cranes with special slings and locating tooling. The painting station is equipped with movable work platforms for operator convenience. Coating inspection is performed in a well-lit area, measuring film thickness and adhesion.
Project services
We provide solution design, equipment manufacturing, installation and commissioning and environmental support for large-part painting lines. When planning, provide the maximum product size and weight, daily output, paint type, coating standard and factory conditions. We will design the spray booth, transfer system and ventilation facilities accordingly.
For a heavy equipment component painting and coating line proposal, contact Taizhou Yufeng Intelligent Equipment Co., Ltd. for a professional evaluation.
