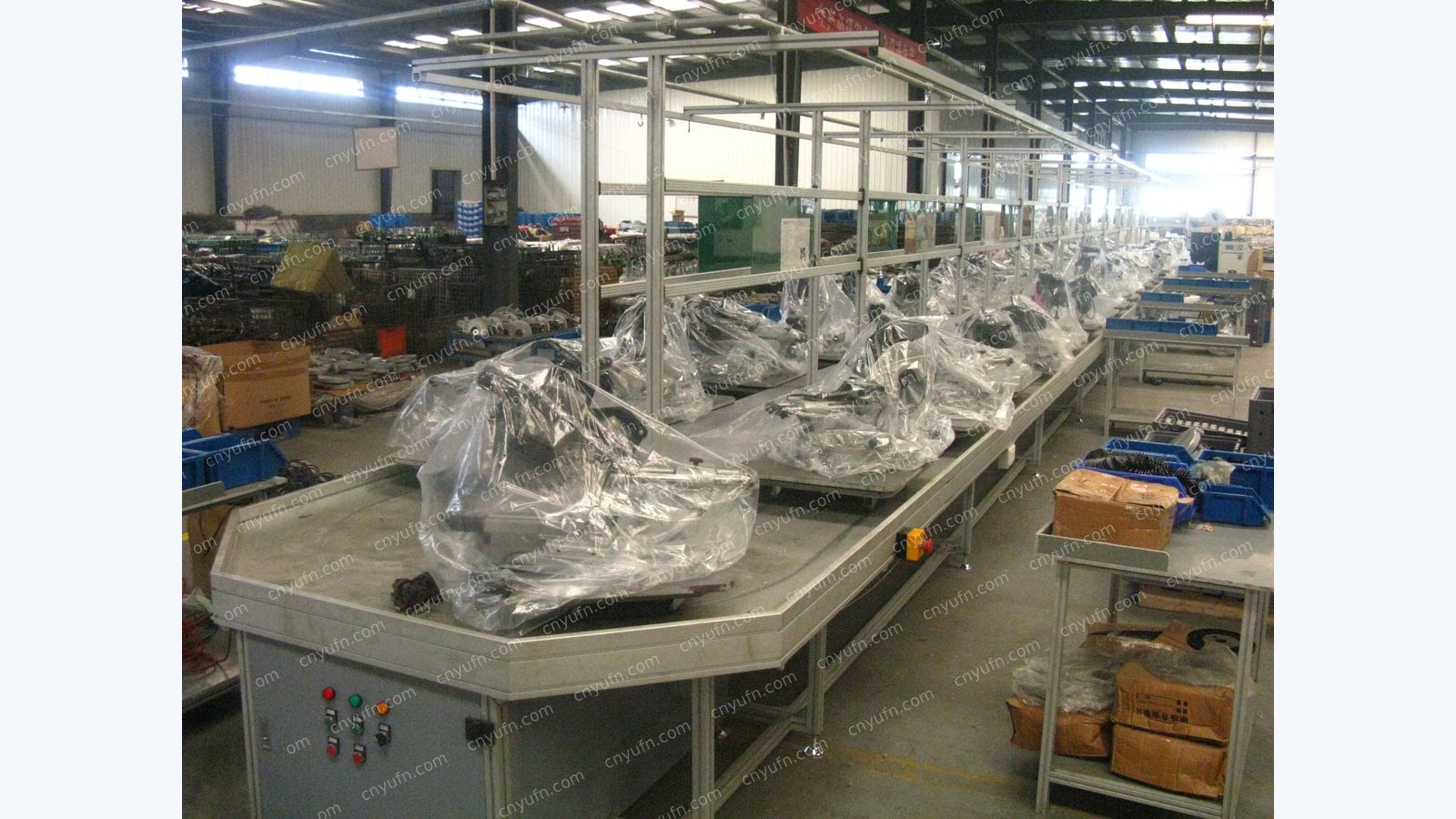

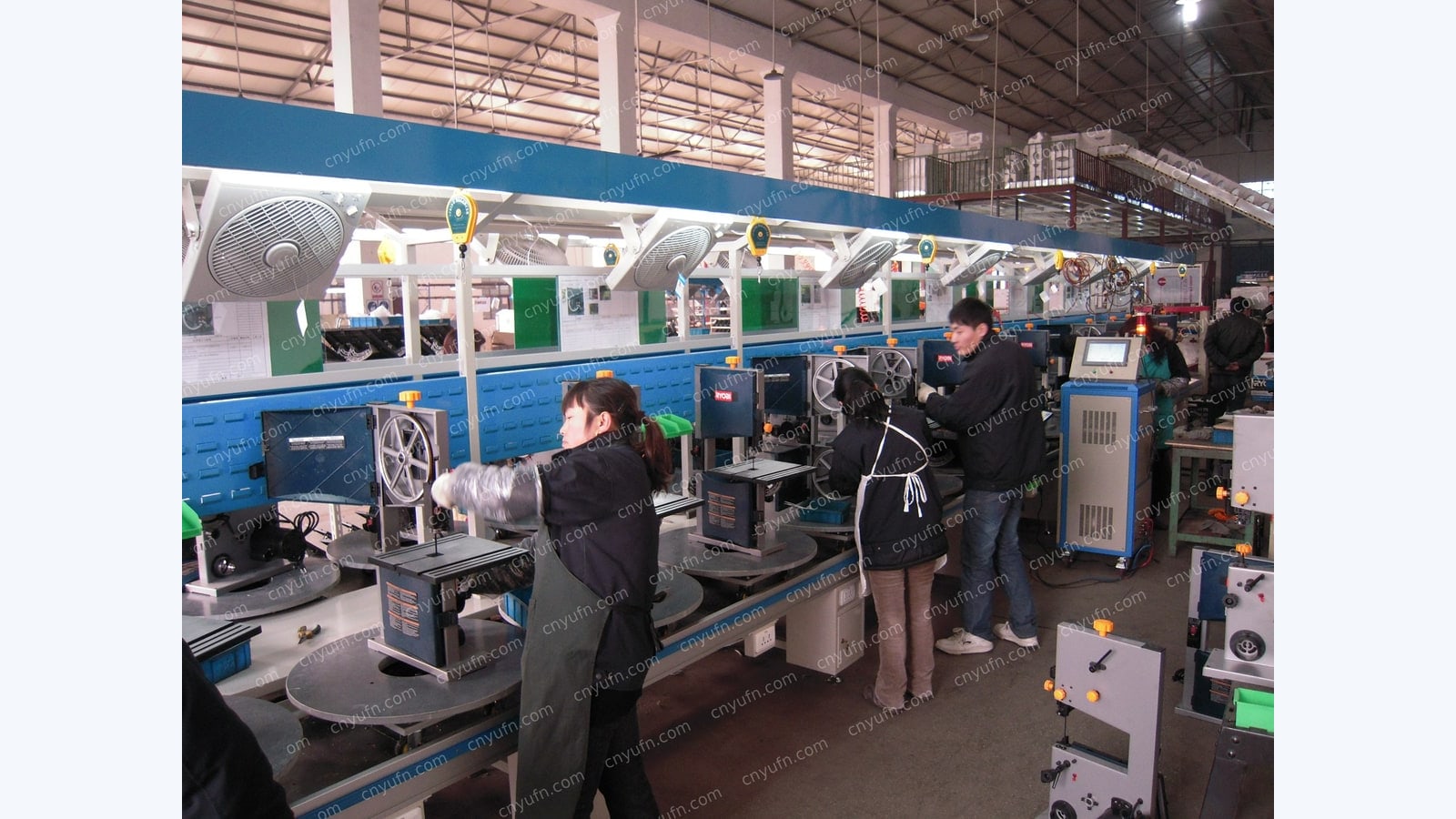

Woodworking machines and aluminum cutting machines are metal and wood processing equipment. Assembly precision directly affects machining quality and equipment service life. These machines have large structural parts and complex electrical control systems, so the assembly process needs careful management. Taizhou Yufeng Intelligent Equipment Co., Ltd. plans an assembly line for equipment manufacturers, organizing frame assembly, function unit assembly, electrical installation and complete machine commissioning into a standardized process.
Frame and base part assembly
The frame assembly station completes the assembly and alignment of the bed, column and beam. Base parts are aligned using locating fixtures and spirit levels to ensure an accurate assembly datum. After assembly, machined surfaces are checked, and the mounting surfaces of moving parts such as guide rails and ball screws are treated to precision requirements. Frame assembly quality is the basis of complete machine precision, so the station is equipped with special measuring tools.
Spindle and sawing unit assembly
The spindle unit and sawing unit are the core function parts of woodworking machines and aluminum cutters. Spindle assembly controls bearing preload and dynamic balancing. Sawing unit assembly controls the saw blade runout and the precision of the angle adjustment mechanism. After assembly, a no-load running test checks noise, temperature rise and vibration. Key parameters are recorded and bound to the product number.
Electrical control installation
The electrical control station completes the installation and wiring of the control cabinet, drives, sensors and operator panel. Electrical drawings are standardized, and harnesses follow defined routes and are fixed. After wiring, electrical inspection and program commissioning verify control functions and safety protection. Electrical safety testing follows standards.
Precision inspection and complete machine commissioning
The commissioning station completes machining precision, positioning precision and function verification. Measuring instruments check straightness, perpendicularity and positioning error, and results are judged according to product standards. Parameters are optimized during commissioning to ensure the equipment reaches factory performance. Commissioning records are bound to the product number to form a factory file.
Line cycle and flexibility
Woodworking machines and aluminum cutters have many specifications. The line uses flexible stations and quick-change fixtures to adapt to different models. The cycle is determined by product complexity and commissioning time, and the number of assembly and commissioning stations is planned according to output. For small-batch, multi-model production, the line emphasizes changeover speed and process standardization.
For a woodworking machine and aluminum cutting machine assembly line proposal, contact Taizhou Yufeng Intelligent Equipment Co., Ltd. for a technical evaluation and quotation.
